ArcBox Mounting Brackets for Photovoltaic Systems
ArcBox Mounting Brackets for Photovoltaic Systems
Universal compatibility for photovoltaic systems.
The ArcBox Mounting Brackets range enables fast and secure installation of ArcBox enclosures in any type of photovoltaic system, including flat, pitched, and roof-integrated (BIPV) installations. Manufactured by Viridian Solar (United Kingdom), the brackets provide dedicated mounting solutions for aluminum rails, wood battens, and specialized solar mounting profiles.
✔ Key Benefits
- Fast, secure installation – each bracket is designed for easy installation using a 0.31–0.39 in T-bolt or direct attachment to wood battens.
- Broad compatibility – suitable for widely used photovoltaic mounting systems, including K2 Systems, Schletter, Sunfixings, Van der Valk, Esdec, Renusol FS Pro / FS10, and others.
- Optimized design – provides 2–3 possible ArcBox orientations for an ideal fit with the DC cable route.
- Durable material – high-strength anodized aluminum for a long service life in outdoor environments.
- Compatible with ArcBox V1.4 – the version certified by KIWA, ZAG, and Loughborough University for more than 5 minutes of electric arc protection without fire propagation.
✔ Available Models
🔹 ARC_M01 – Universal Rail Bracket
The ARC_M01 bracket attaches to standard photovoltaic rails using a 0.31 or 0.39 in T-bolt. The bracket can be rotated before tightening to align the ArcBox precisely with the cable route. Compatible with systems such as Schletter FixGrid, K2 Dome Fix, Van der Valk ValkPro, Sunfixings, and others.

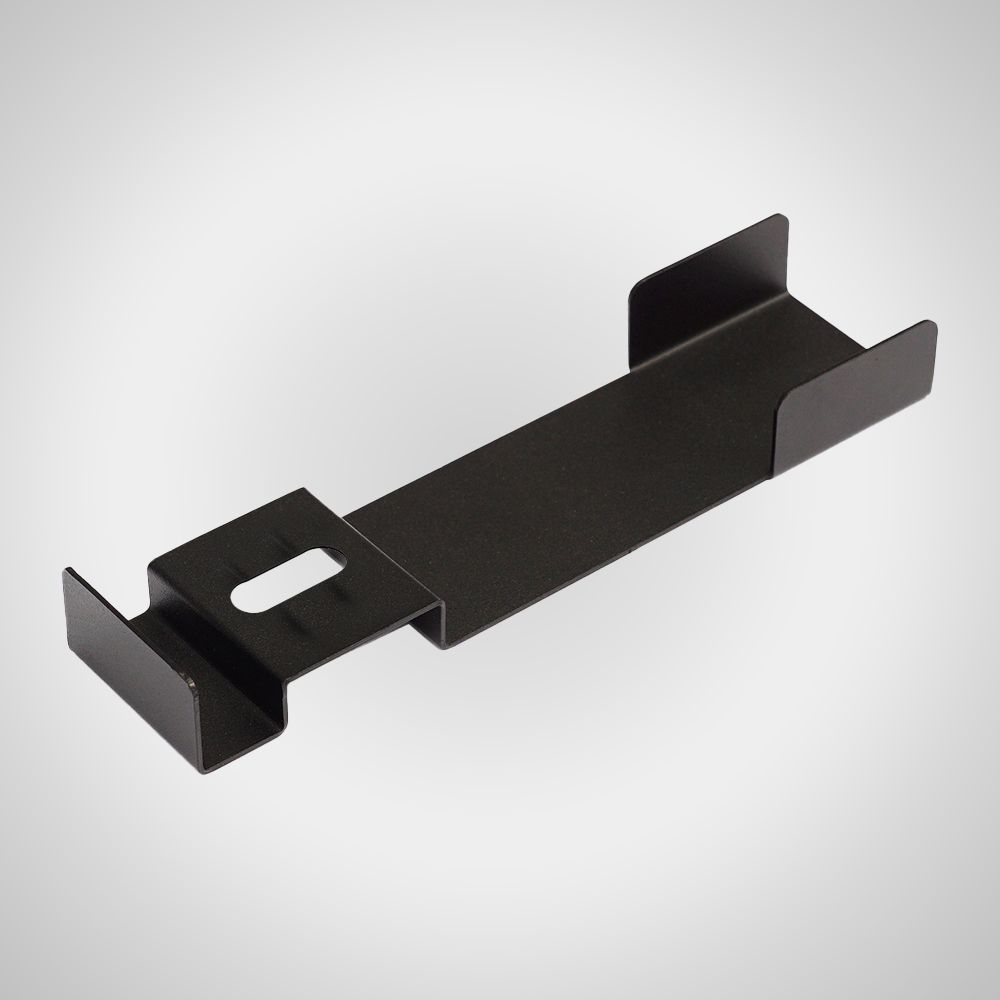

🔹 ARC_M02 – Wide-Rail Bracket (up to 1.57 in)

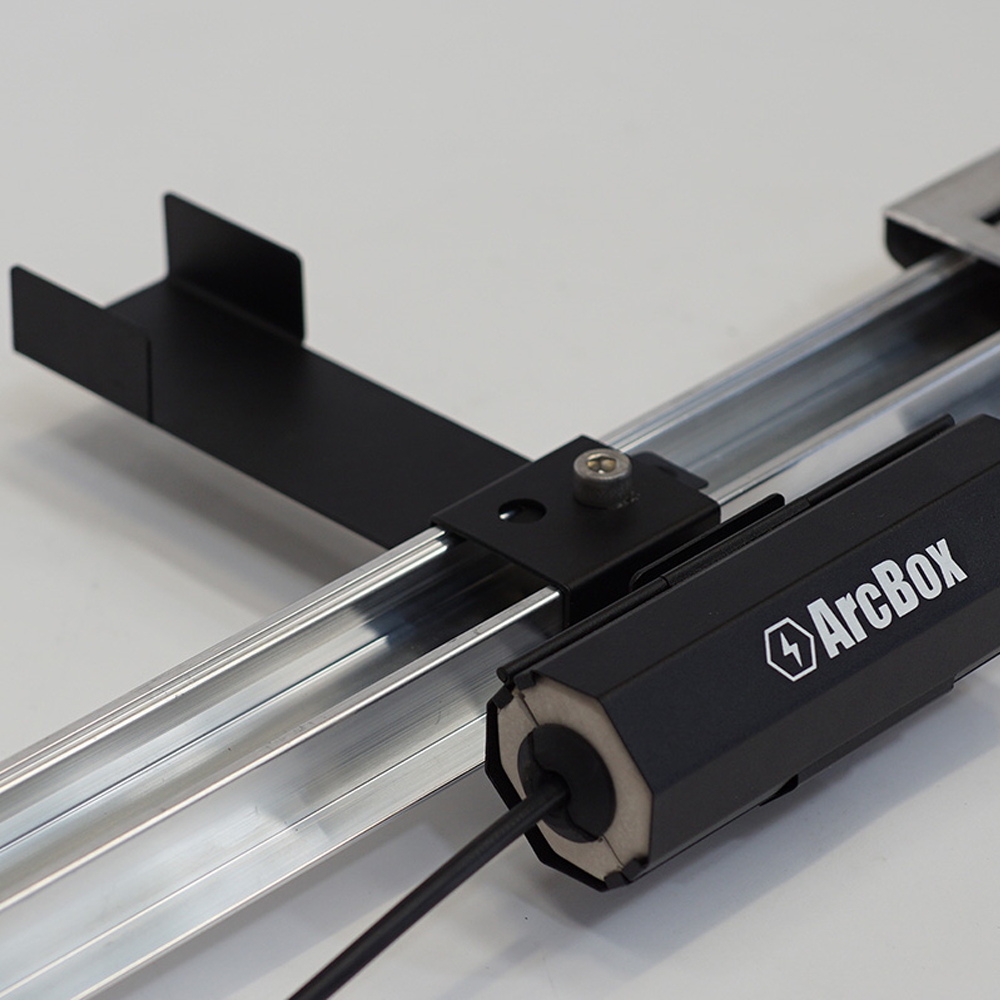

The ARC_M02 is ideal for profiles up to 1.57 in wide and provides three mounting points for different ArcBox orientations. Recommended for modules mounted parallel to the roof using systems such as K2 Dome Fix, ValkPro, and Sunfixings.

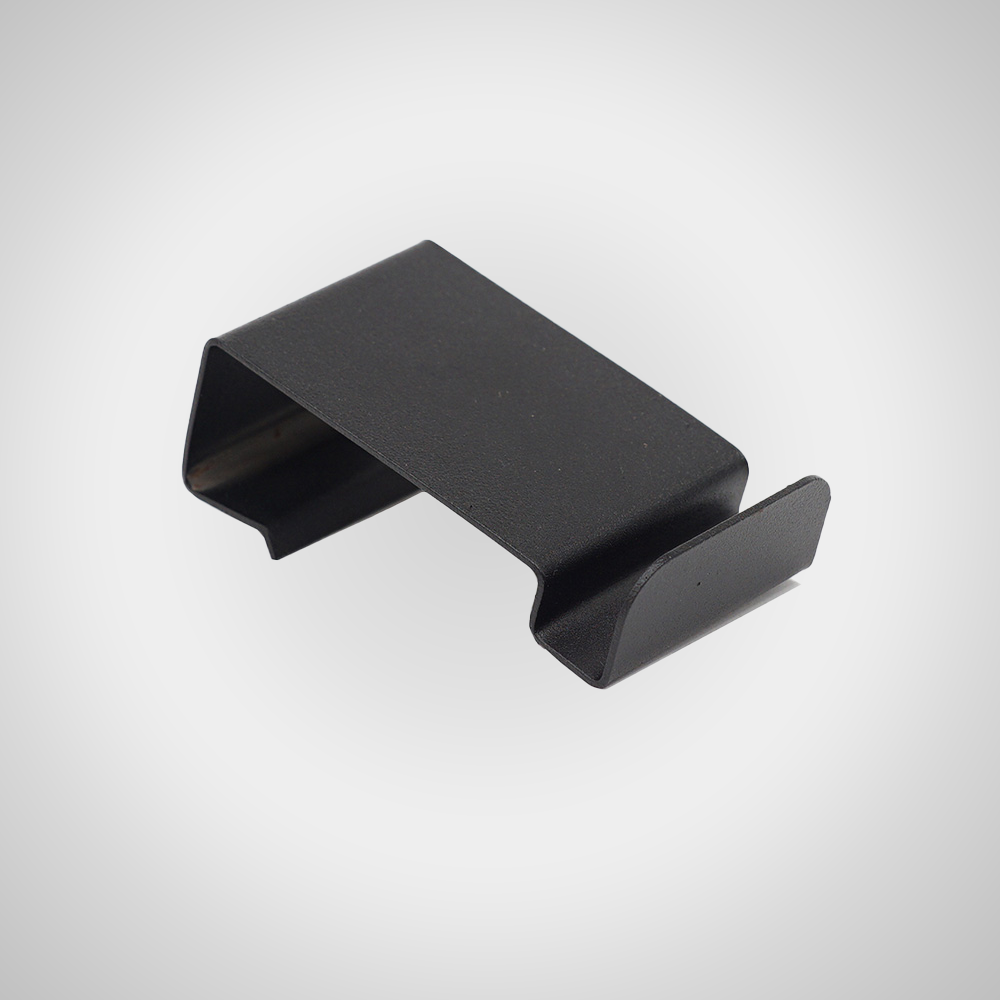

🔹 ARC_BM25 and ARC_BM30 – Roof-Batten Brackets

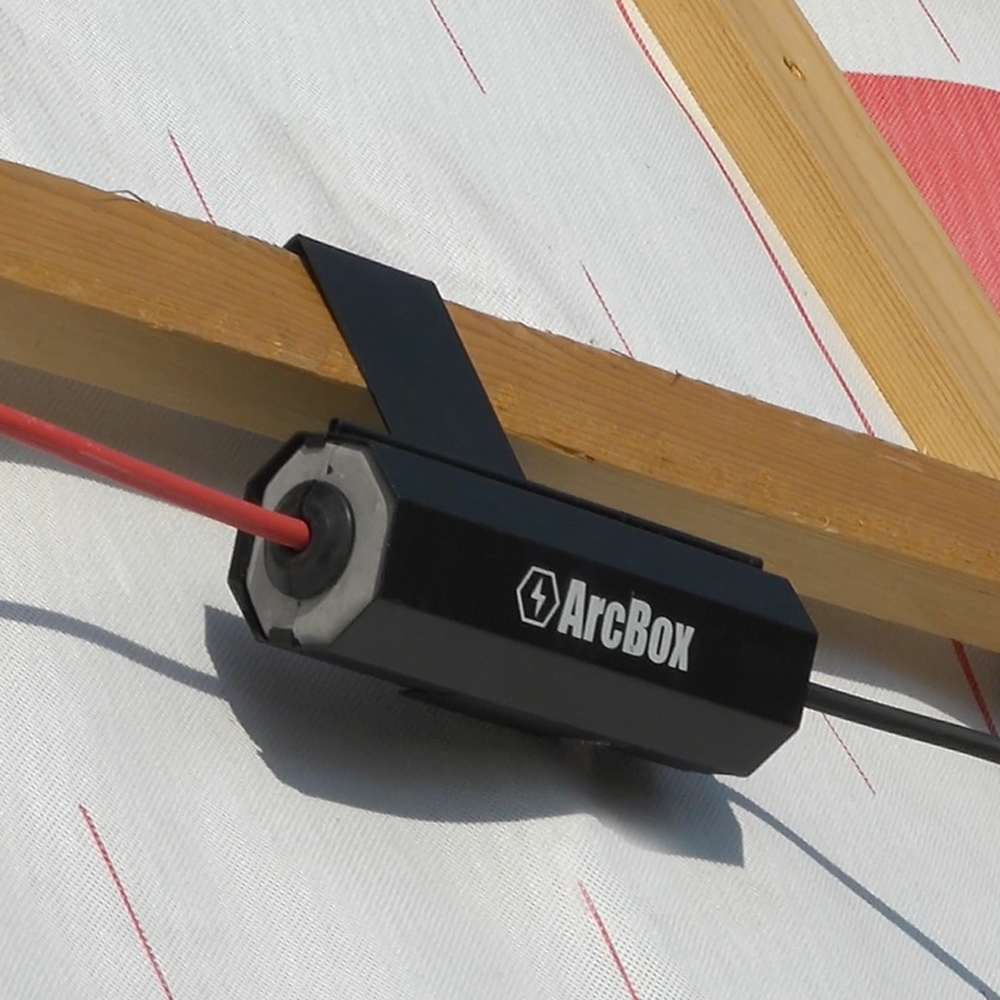

The ARC_BM25 and ARC_BM30 models are intended for roof-integrated photovoltaic systems and attach directly to wood battens. The bracket hooks over a 0.87–0.98 in batten (BM25) or a 1.18 in batten (BM30), positioning the ArcBox behind the solar panels in the designated mounting space.
✔ Comparison Table
| Model | Mounting Type | Compatibility | Fastening | Applications |
|---|---|---|---|---|
| ARC_M01 | Standard rail | Schletter, K2, ValkPro, Sunfixings | 0.31/0.39 in T-bolt | Flat or pitched roof |
| ARC_M02 | Wide rail (up to 1.57 in) | K2 Dome, ValkPro, Sunfixings | 0.31/0.39 in T-bolt | Parallel-to-roof installation |
| ARC_BM25 | 0.87–0.98 in batten | BIPV / Roof-integrated PV | Hook-on mounting | Behind-panel installation |
| ARC_BM30 | 1.18 in batten | BIPV / Roof-integrated PV | Hook-on mounting | Behind-panel installation |
✔ Typical Applications
- Flat, pitched, or roof-integrated (BIPV) roofs
- Commercial, industrial, and residential photovoltaic installations
- DC cable routes exposed to combustible materials
- K2, Schletter, ValkPro+, Renusol FS Pro / FS10, and Esdec FlatFix systems
✔ General Specifications
| Material: | Corrosion-resistant anodized aluminum |
| Operating temperature: | –40 °F to +185 °F |
| Weight: | Approx. 14.5 oz (ArcBox + bracket) |
| Certifications: | Tested by KIWA / ZAG / Loughborough University |
| Compatibility: | ArcBox V1.4 and later |
✔ Additional Information
- Ships from stock in Littleton, Colorado
- Technical documentation and PDF data sheets available upon request
- Warranty: 24 months for business customers
ArcBox Mounting Brackets – Viridian Solar's professional solution for secure, fast, and compatible installation in any photovoltaic system.
