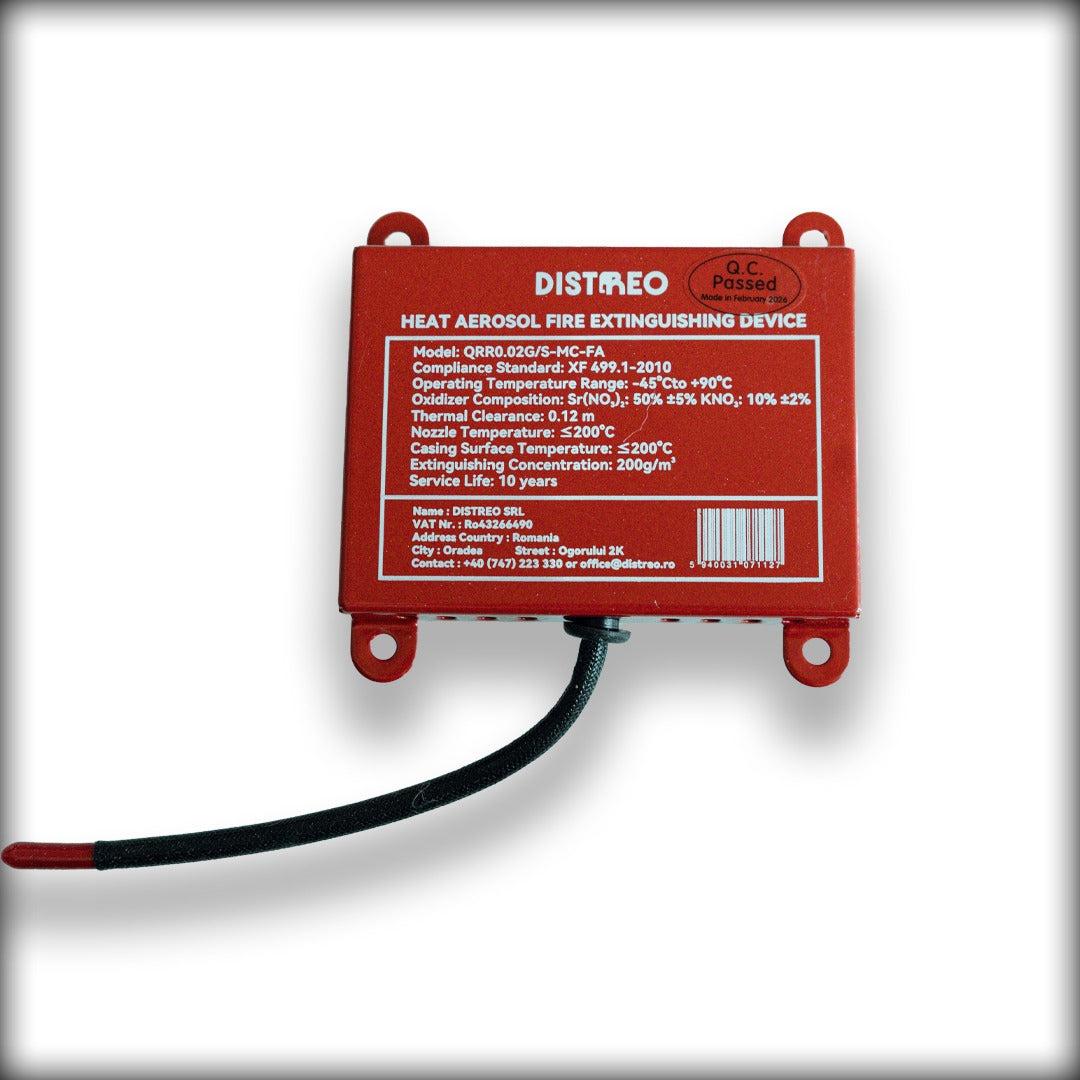

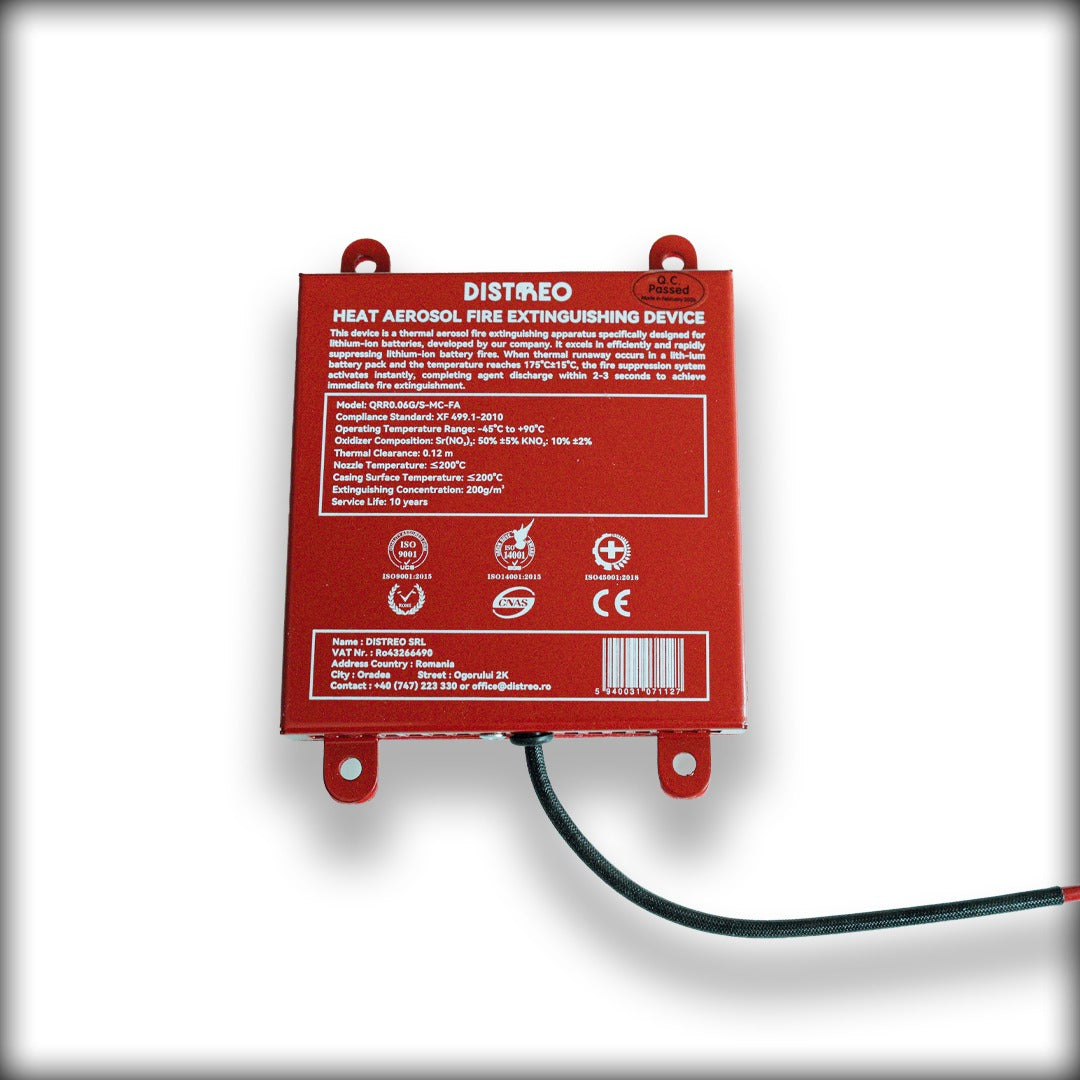

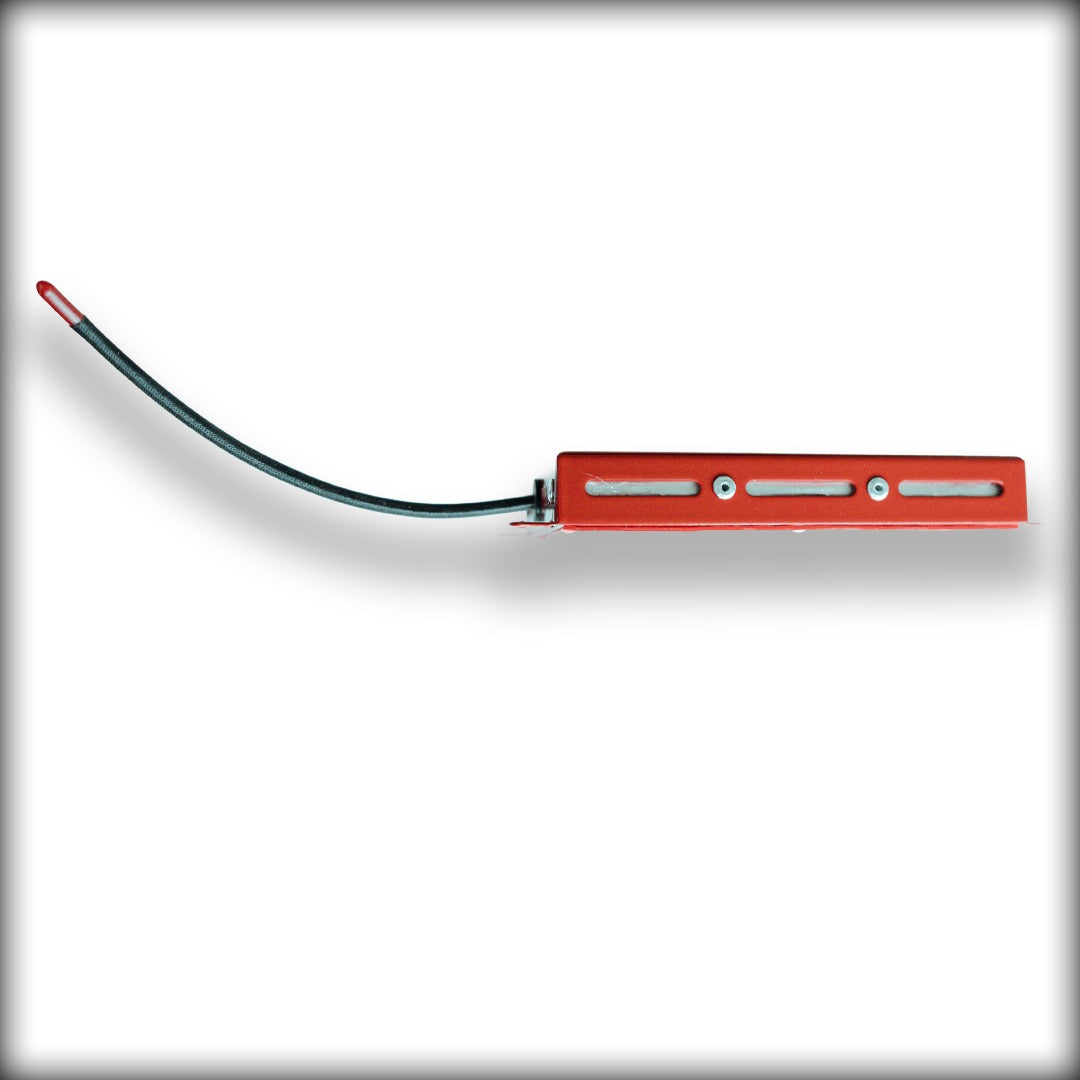

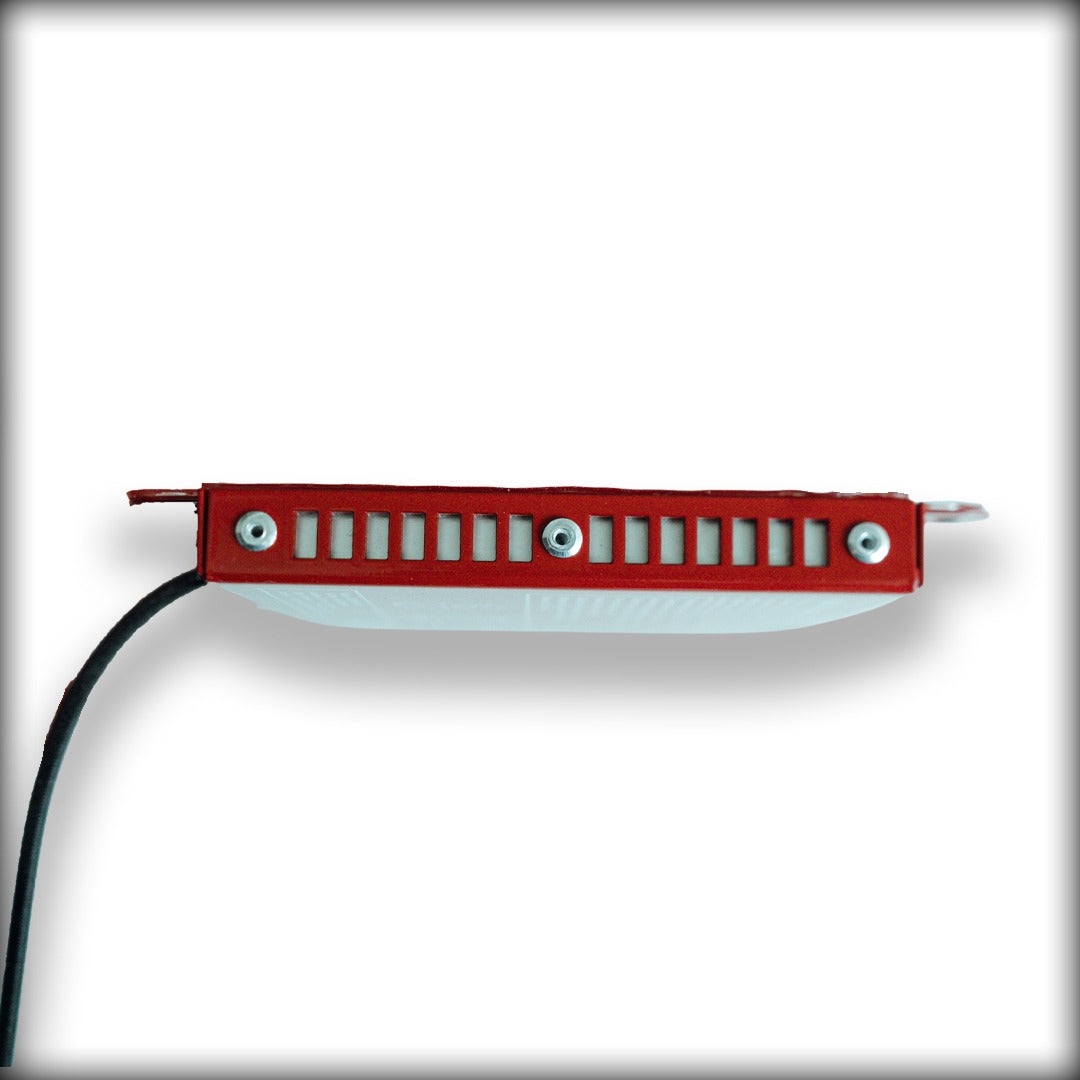

FlareRack – compact automatic thermal-aerosol fire-suppression system
FlareRack – compact automatic thermal-aerosol fire-suppression system
FlareRack is a compact automatic suppression system using thermal aerosol, designed to protect enclosed technical spaces, electrical equipment, battery cabinets, energy-storage systems, and other enclosures where a fast, effective, and easily integrated solution is needed.
Thanks to its compact format and type-S thermal-aerosol technology, FlareRack provides localized fire protection with no piping, no pressure, and no complex installation work. It is a suitable solution for confined spaces, critical equipment, and applications where a conventional suppression system would be difficult or costly to implement.
Automatic protection for technical spaces and critical equipment
FlareRack activates automatically when the temperature in the protected zone reaches 347°F ± 27°F (175°C ± 15°C), or it can be triggered electrically via a control system. Once activated, the suppression agent is discharged rapidly into the protected enclosure, helping to suppress the fire in a very short time.
The product is recommended for applications where a rapid response at the onset of a fire is important, particularly in hard-to-reach areas or in enclosed spaces housing valuable equipment.
Key advantages
- Automatic suppression system – activates thermally or electrically, depending on the configuration of the application.
- Compact design – suited to electrical cabinets, technical enclosures, charging stations, and enclosures with limited space.
- No pressure and no piping – requires no complex installation infrastructure.
- Rapid response – the agent is discharged within a few seconds of activation.
- No periodic maintenance – a practical solution for industrial and technical applications.
- 10-year service life – suited to projects that require long-term protection.
- Wide range of models – covering protected volumes from 7.1 ft³ up to 53 ft³ (0.2–1.5 m³).
Recommended applications
- electrical cabinets and distribution boards;
- enclosed electrical and electronic equipment;
- compact technical spaces;
- energy-storage systems;
- battery cabinets and cabins;
- charging stations and cabinets;
- distribution boxes and industrial equipment;
- technical enclosures requiring automatic localized fire protection.
Available models
| Model | Aerosol agent | Protected volume | Dimensions |
|---|---|---|---|
| FlareRack 0.02G | 0.71 oz (20 g) | 7.1 ft³ (0.2 m³) | 3.54 × 3.03 × 0.55 in |
| FlareRack 0.04G | 1.41 oz (40 g) | 14.1 ft³ (0.4 m³) | 4.88 × 3.03 × 0.55 in |
| FlareRack 0.06G | 2.12 oz (60 g) | 21.2 ft³ (0.6 m³) | 5.31 × 4.09 × 0.55 in |
| FlareRack 0.08G | 2.82 oz (80 g) | 28.3 ft³ (0.8 m³) | 6.22 × 3.94 × 0.67 in |
| FlareRack 0.1G | 3.53 oz (100 g) | 35.3 ft³ (1 m³) | 6.22 × 3.94 × 0.67 in |
| FlareRack 0.12G | 4.23 oz (120 g) | 42.4 ft³ (1.2 m³) | 6.22 × 3.94 × 0.67 in |
| FlareRack 0.15G | 5.29 oz (150 g) | 53 ft³ (1.5 m³) | 6.22 × 3.94 × 0.67 in |
The model is selected according to the net protected volume, at a suppression density of 0.1 oz/ft³ (100 g/m³). For ventilated, irregular, or high-risk spaces, sizing and placement must be confirmed before installation.
Key technical specifications
- Product type: compact thermal-aerosol suppression system
- Suppression agent: type-S thermal aerosol
- Compliance standard: XF 499.1-2010
- Suppression density: 0.1 oz/ft³ (100 g/m³)
- Activation method: thermal or electrical activation
- Thermal activation temperature: 347°F ± 27°F (175°C ± 15°C)
- Electrical initiator: 24 V DC, ≥ 400 mA
- Discharge time: ≤ 5 seconds
- Delay time: ≤ 2 seconds
- Operating temperature: -49°F to 194°F (-45°C to 90°C)
- Relative humidity: ≤ 95% RH
- Service life: 10 years
Fast installation, with no complex infrastructure

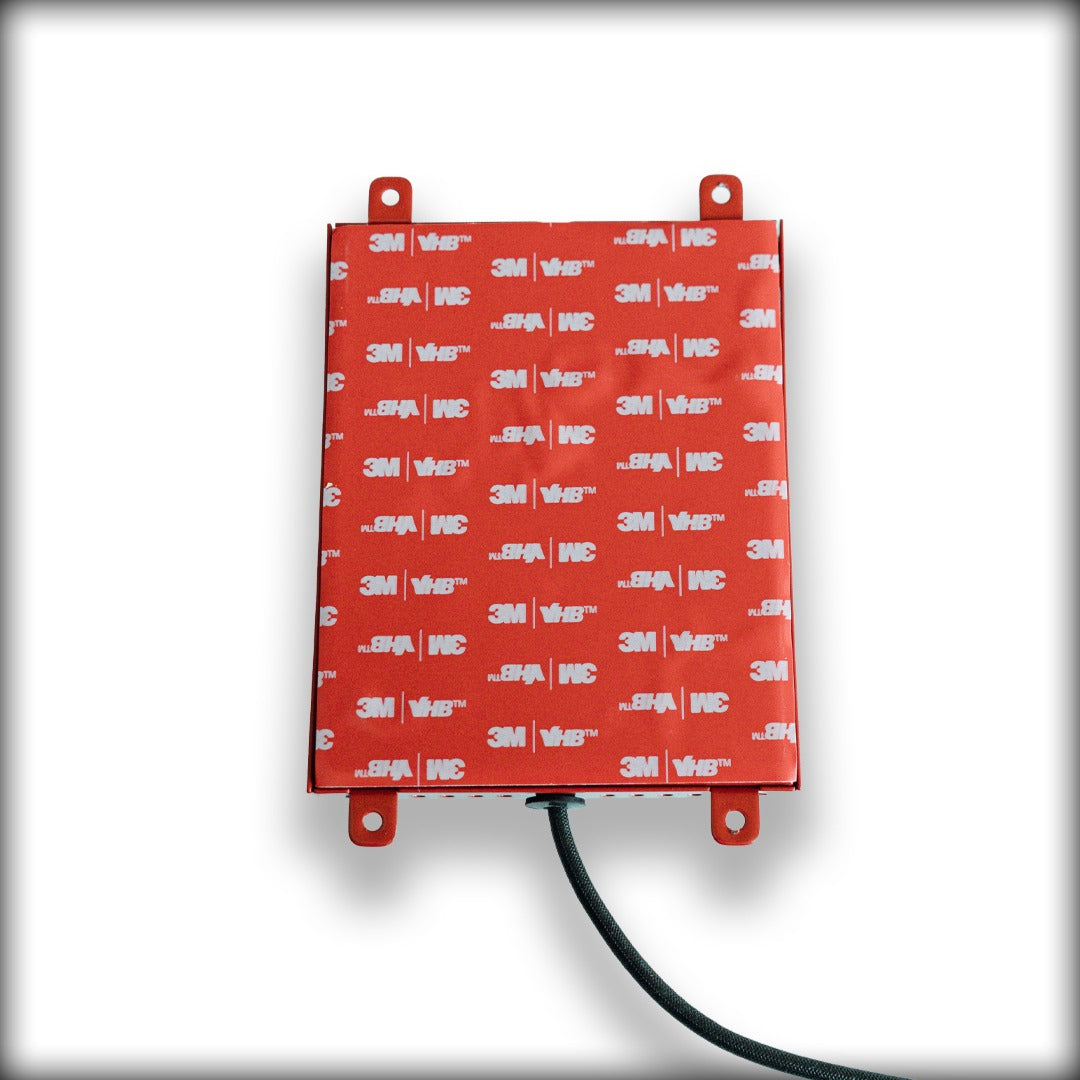

FlareRack can be mounted on a clean, dry surface using a 3M adhesive base, M4 screws, or heat-resistant cable ties. For correct operation, it is recommended to keep a clear space of at least 1 ft (0.3 m) in front of the device and to avoid mounting it near air intakes, exhausts, doors, windows, or damp areas.
The heat-sensitive cord is positioned around the perimeter of the risk zone, so that the system can react quickly to a rise in temperature. Installation must be carried out by qualified personnel, according to the type of enclosure and the configuration of the protected equipment.
A practical solution for localized fire protection
FlareRack is suited to companies, integrators, equipment manufacturers, logistics centers, industrial spaces, and technical applications where automatic protection is needed in a compact format. With its rapid activation, simple installation, and small dimensions, the product offers an effective alternative for protecting critical equipment and enclosed spaces.
Choose the FlareRack model that matches your protected volume, or contact the Distreo team for a technical recommendation and a tailored quote.
