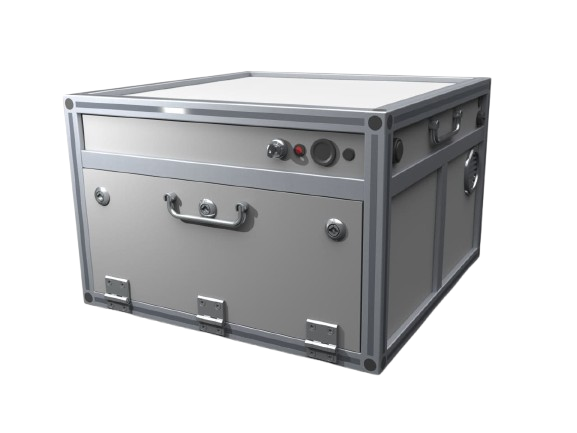

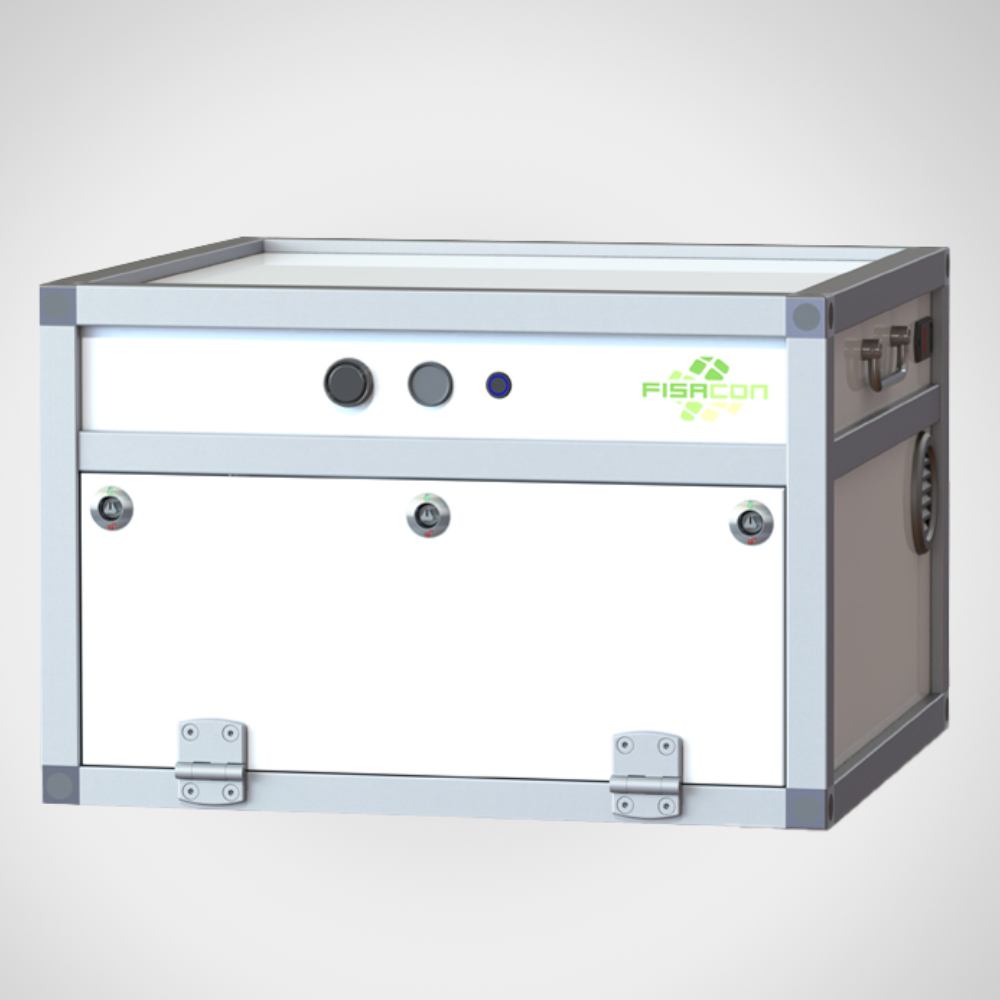

SQUARE RACLAN Lithium-Ion Battery Charging / Storage Box – 3.5 kWh

The SQUARE RACLAN Box was developed for the safe charging and storage of lithium-ion batteries.

As soon as a critical temperature increase is detected inside the box, charging is stopped and the extinguishing agent is released.

Dimensions: 22.83 x 22.83 x 15.75 in (interior: 21.26 x 21.26 x 9.06 in)

Benefits:

• Developed for demanding or complex operating conditions.
• Water resistant.
• Fire resistant.
• Explosion dampening system (REBS).
• Autonomous battery monitoring.
• Integrated thermal sensor.
• Designed for batteries up to 3.5 kWh plus charger.
• Internal tank containing 2.64 gal of Trident extinguishing and cooling fluid.
• Exhaust system with a multilayer toxin filter for HF and VOCs.
• Audible alarm function.
• Visual function monitoring.
• All hinges are made of stainless steel.
• Three-month emergency power supply.
• Housing made from high-tech composite material.
• Boxes can be stacked.
• Certified by DMT TÜV Nord (accredited by Lloyd's Register) in accordance with M02-2022, “Storage Containers for Lithium-Ion Rechargeable Batteries and Batteries.”
• 4 power outlets inside.
• Standard finish: beech wood. Custom finishes are available as an option.
