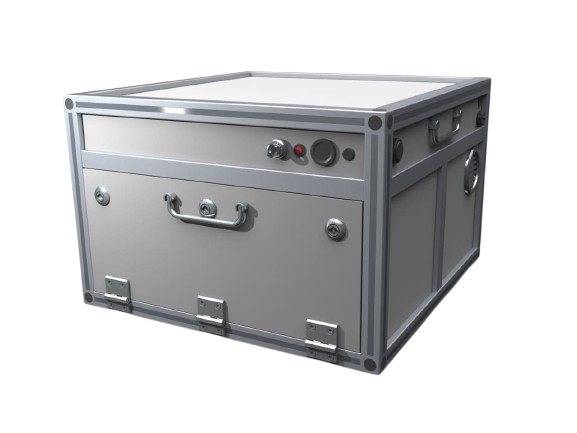

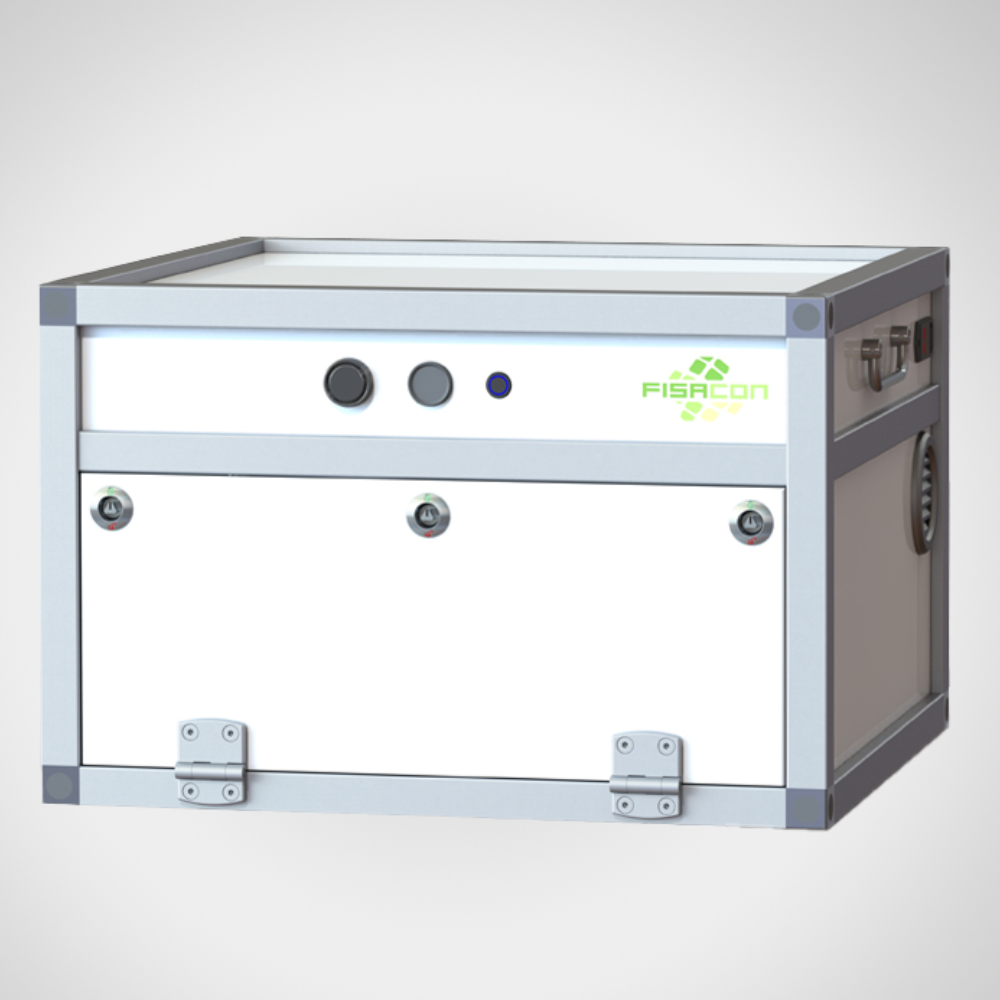

SQUARE RACLAN Storage / Charging Box Lithium-Ion Batteries 3.5 kWh

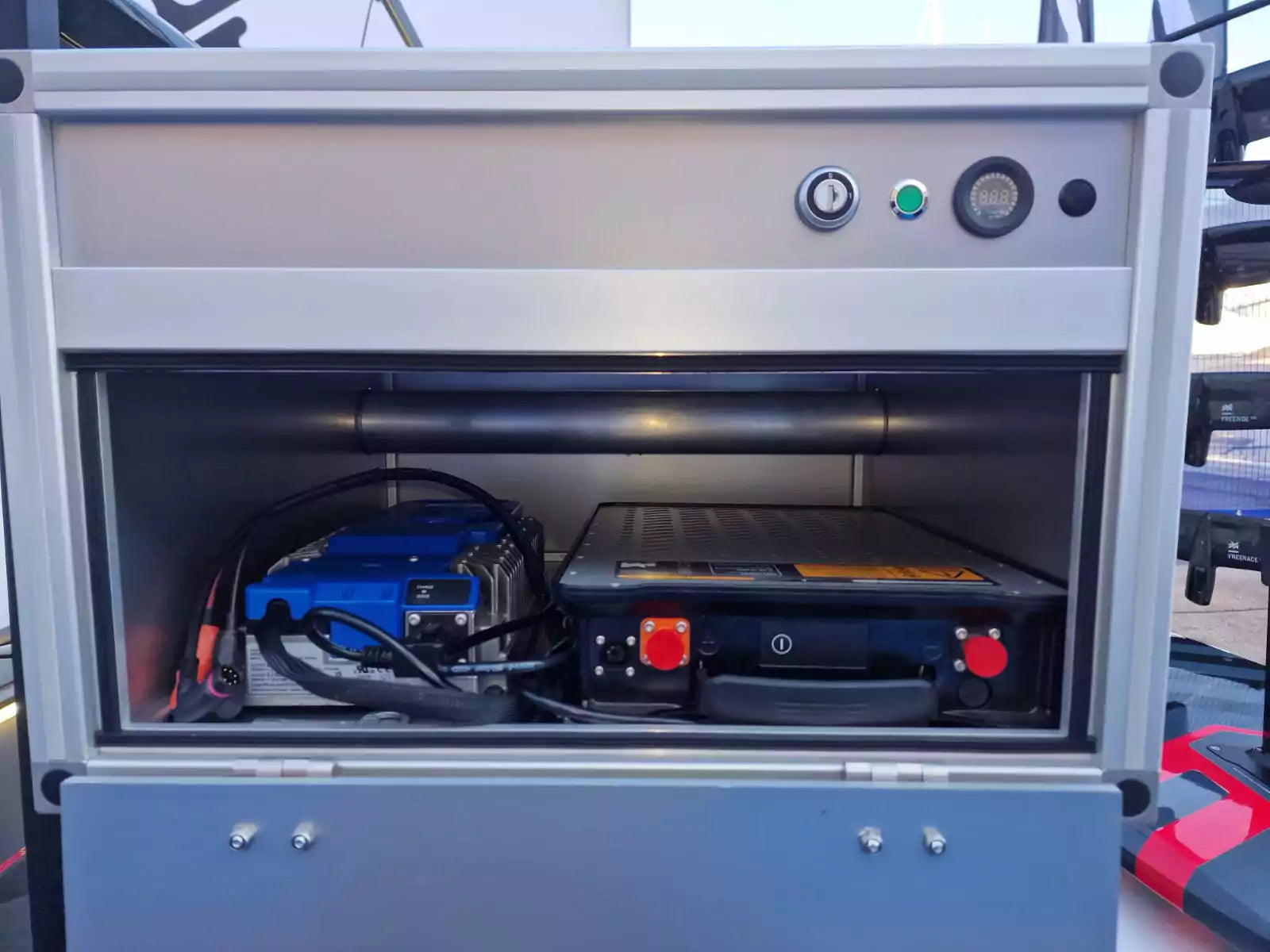

The SQUARE RACLAN box was developed for the safe charging and storage of lithium-ion batteries.

As soon as a critical increase in temperature is detected inside the box, the charging function stops and the extinguishing agent is released.

Dimensions: 580 x 580 x 400 mm (interior: 540 x 540 x 230 mm)

Benefits:

• Developed for use in difficult or complex conditions.
• Water resistant.
• Fire resistant.
• Rebound Explosion Suppression System (REBS).
• Autonomous battery monitoring.
• Integrated thermal sensor.
• Designed for batteries up to 3.5 kWh + charger.
• Internal tank with 10 liters of Trident extinguishing and cooling fluid.
• Exhaust with multi-layer toxin filter for HF and VOC.
• Acoustic alarm function.
• Optical function control.
• All hinges are made of stainless steel.
• Emergency food for three months.
• The housing is made of high-tech composite material.
• The boxes can be stored one on top of the other.
• Certified by DMT TÜV Nord (accredited by Lloyd's Register) in accordance with M02-2022 "Storage containers for lithium-ion accumulators and batteries".
• 4 sockets inside.
• The standard color is "beech wood". Custom surfaces are optionally available.
