FlareRack – a compact automatic thermal aerosol fire suppression system
FlareRack is a compact automatic thermal aerosol fire suppression system, designed to protect enclosed technical spaces, electrical equipment, battery cabinets, energy storage systems, and other enclosures where a fast, efficient, and easily integrated solution is required.
Thanks to its compact design and Type S thermal aerosol technology, FlareRack provides localized fire protection without piping, without pressure, and without complex installation work. It is a suitable solution for confined spaces, critical equipment, and applications where a conventional fire suppression system would be difficult or costly to implement.
Automatic protection for technical spaces and critical equipment
FlareRack activates automatically when the temperature in the protected area reaches 175°C ± 15°C, or it can be triggered electrically via a control system. Once activated, the extinguishing agent is rapidly sprayed into the protected area, helping to suppress the fire in a very short time.
This product is recommended for applications where a rapid response at the onset of a fire is critical, particularly in hard-to-reach areas or enclosed spaces that house valuable equipment.
Key Benefits
- Automatic fire suppression system – activated thermally or electrically, depending on the application configuration.
- Compact design – suitable for electrical cabinets, equipment rooms, charging stations, and spaces with limited room.
- No pressure and no pipes —no complex installation infrastructure required.
- Fast response – the agent is sprayed within seconds of activation.
- No periodic maintenance —a practical solution for industrial and technical applications.
- 10-year lifespan —ideal for projects requiring long-term protection.
- Wide range of models —covering protected volumes from 0.2 m³ to 1.5 m³.
Recommended Apps
- electrical cabinets and distribution panels;
- sealed electrical and electronic equipment;
- compact technical spaces;
- energy storage systems;
- cabinet and enclosures for batteries;
- charging stations and charging cabinets;
- distribution boxes and industrial equipment;
- technical rooms where automatic local fire protection is required.

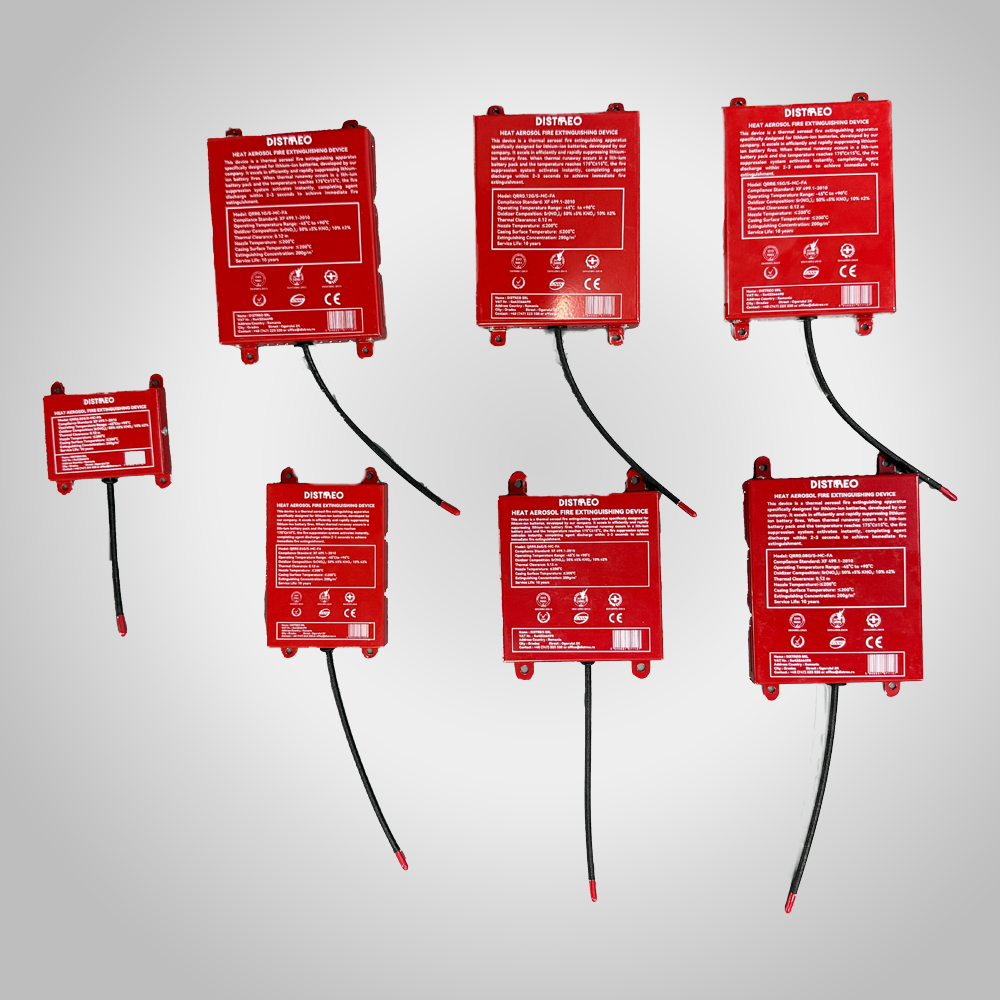

Available Models
| Model | Aerosol agent | Protected volume | Dimensions |
|---|---|---|---|
| FlareRack 0.02G | 20 g | 0.2 m³ | 90 × 77 × 14 mm |
| FlareRack 0.04G | 40 g | 0.4 m³ | 124 × 77 × 14 mm |
| FlareRack 0.06G | 60 g | 0.6 m³ | 135 × 104 × 14 mm |
| FlareRack 0.08G | 80 g | 0.8 m³ | 158 × 100 × 17 mm |
| FlareRack 0.1G | 100 g | 1 m³ | 158 × 100 × 17 mm |
| FlareRack 0.12G | 120 g | 1.2 m³ | 158 × 100 × 17 mm |
| FlareRack 0.15G | 150 g | 1.5 m³ | 158 × 100 × 17 mm |
The model is selected based on the net protected volume, at an extinguishing density of 100 g/m³. For ventilated, irregular, or high-risk spaces, the sizing and placement must be confirmed prior to installation.
Key Technical Specifications
- Product type: compact thermal aerosol fire suppression system
- Extinguishing agent: Type S thermal aerosol
- Compliance standard: XF 499.1-2010
- Extinguishing density: 100 g/m³
- Start-up method: thermal or electric start
- Thermal activation temperature: 175°C ± 15°C
- Electric starter: 24 V DC, ≥ 400 mA
- Spray time: ≤ 5 seconds
- Delay time: ≤ 2 seconds
- Operating temperature: -45°C to +90°C
- Relative humidity: ≤ 95% RH
- Service life: 10 years
Quick installation, no complex infrastructure required

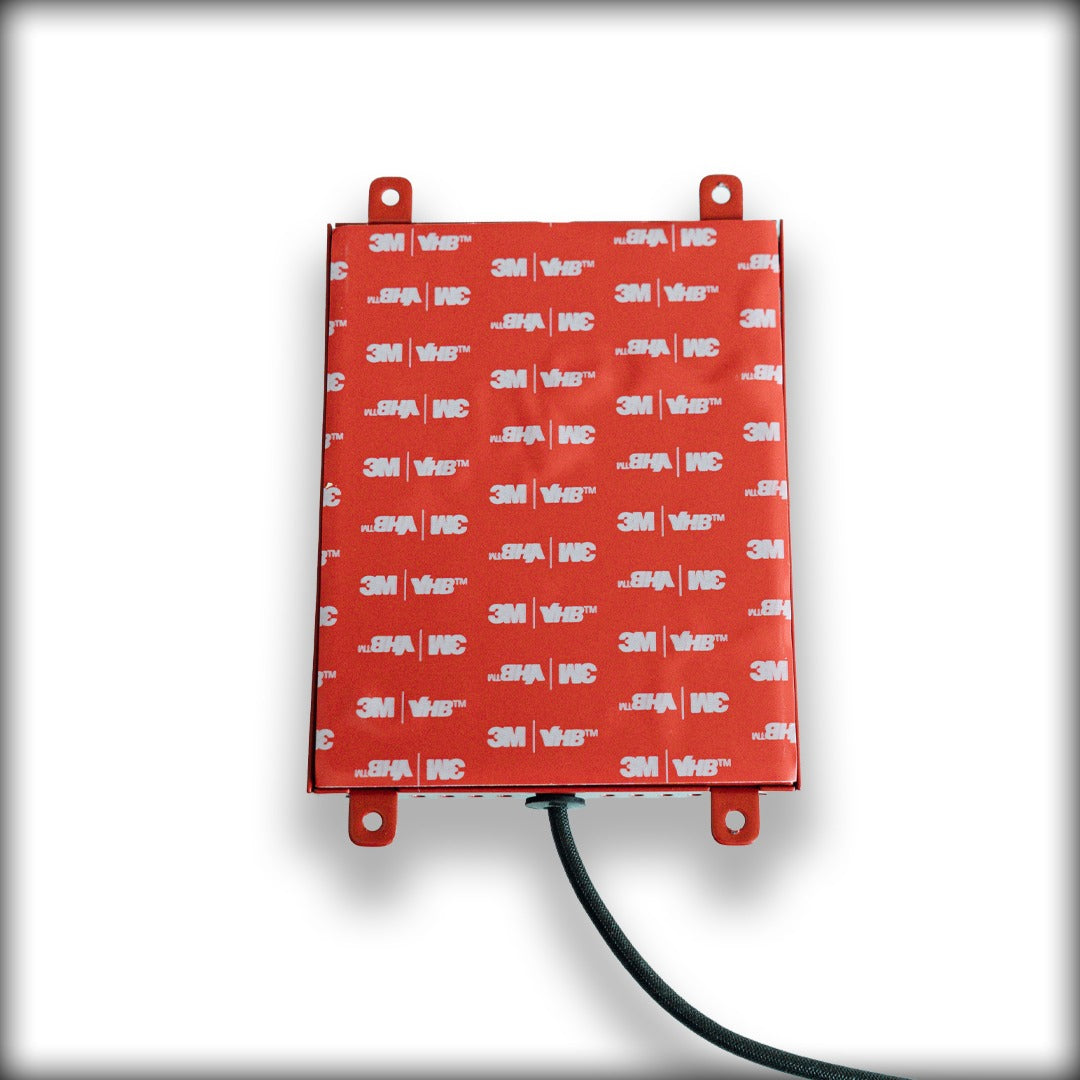

FlareRack can be mounted on a clean, dry surface using 3M adhesive pads, M4 screws, or heat-resistant cable ties. For proper operation, it is recommended to maintain a minimum clearance of 0.3 m in front of the device and to avoid mounting it near air intakes, exhaust vents, doors, windows, or damp areas.
The heat-sensitive wire is positioned around the perimeter of the risk area so that the system can respond quickly to a rise in temperature. Installation must be performed by qualified personnel, depending on the type of enclosure and the configuration of the protected equipment.
A practical solution for local fire protection
FlareRack is suitable for companies, system integrators, equipment manufacturers, logistics centers, industrial facilities, and technical applications where automatic protection is required in a compact format. With rapid activation, simple installation, and compact dimensions, the product offers an effective alternative for protecting critical equipment and enclosed spaces.
Choose the FlareRack model that best suits your storage needs, or contact the Distreo team for technical advice and a customized quote.
